Sichuan Liaofu Special Steel Company is one of the most experienced manufacturers and suppliers of h13 mould die steel round bar in China. With over 20 years' experience, our factory offer high quality products made in China with competitive price. Welcome to contact us for wholesale service.

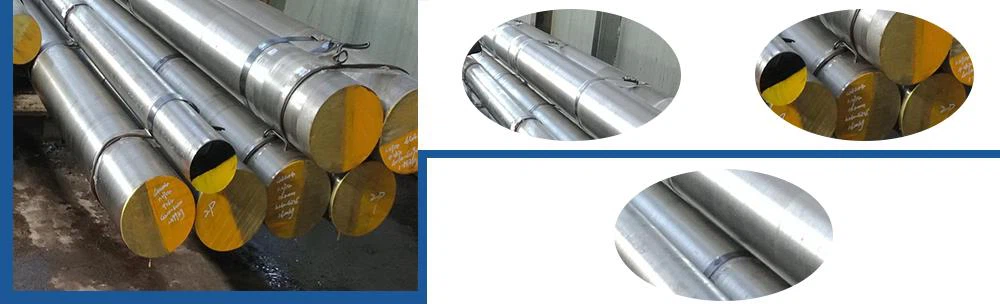

H13 mould die steel round bar
H13 mould die steel is chromium hot work tool steels which are widely used in hot and cold work tooling applications. H13 tool steelis classified as group H steels by the AISI classification system. This series of steels start from H1 to H19.
AISI H-13 tool steel is characterized by:
* Good resistance to abrasion at both low and high temperatures
* High level of toughness and ductility
* Uniform and high level of machinability and polishability
* Good high-temperature strength and resistance to thermal fatigue
* Excellent through-hardening properties
* Very limited distortion during hardening
Product Basic Information:
1.Equivalent Steel Grade
Common H13 Tool Steel Related Specifications | |||
Country | USA | German | Japan |
Standard | ASTM A681 | DIN EN ISO 4957 | JIS G4404 |
Grades | H13 | 1.2344/X40CrMoV5-1 | SKD61 |
2.H13 Steel Mechanical Properties
Properties | Metric | Imperial |
Tensile strength, ultimate (@20°C/68°F, varies with heat treatment) | 1200 – 1590 MPa | 174000 – 231000 psi |
Tensile strength, yield (@20°C/68°F, varies with heat treatment) | 1000 – 1380 MPa | 145000 – 200000 psi |
Reduction of area (@20°C/68°F) | 50.00% | 50.00% |
Modulus of elasticity (@20°C/68°F) | 215 GPa | 31200 ksi |
Poisson's ratio | 0.27-0.30 | 0.27-0.30 |
Delivery condition:
Hot rolled or forging
EAF or ESR material
Black or machined surface
Annealing ,hardness:HBS <229
Available sizes:
Round bar size: 60mm to 350mm
Thickness: 20-300mm
Width: 205-610mm
Length: 2000-5800mm
Polished surface
Below inspection will be done in the production.
(1) Ray detection---RT;
(2) Ultrasonic testing---UT;
(3) Magnetic Particle Testing-MT;
(4) Penetration testing-PT;
(5) Eddy current flaw detection-ET
Packing & Delivery
Packing Details : Export standard package,bundled or be required.
The inner size of container is below:
20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Delivery Details : 7-15 days,or according to the order quantity or upon negotiation
| Package | With strips, wooden pallets, standard export package or as required |
Lead Time | 7-10 days after get deposit |
Payment Terms | T/T, L/C |
Price Terms | FOB, CRF, CIF, EXW |
FAQ
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as TUV, CE, if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival.
Q: Delivery time?
A: We have ready stock for most of material grades in our warehouse. If the material don’t have stock, the delivery lead time is about 5-30 days after receiving your prepayment or firm order.
Q: What is the payment term?
A: T/T or L/C.
Q: Can you provide a sample for our testing before confirm the order?
A: Yes. We can provide sample to you for approval before you place an order to us. Free sample is available if we have stock.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
