Sichuan Liaofu Special Steel Company is one of the most experienced manufacturers and suppliers of gr1 gr2 gr5 titanium plate in China. With over 20 years' experience, our factory offer high quality products made in China with competitive price. Welcome to contact us for wholesale service.

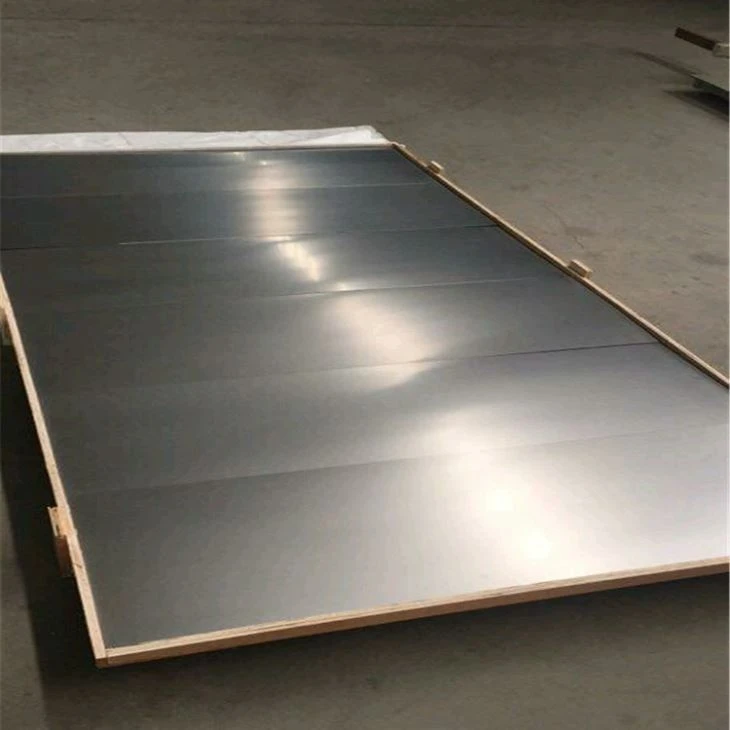

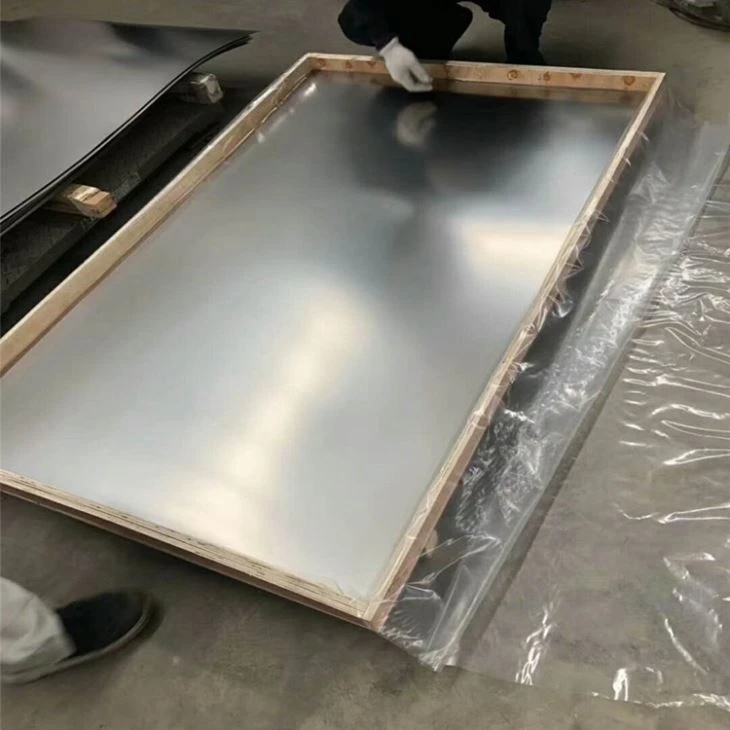

GR1 GR2 GR5 titanium plate sheet supplier
1. Titanium is a kind of rare nonferrous metal. Its density is 4.5g/cm³,it is just 60% of steel.So,it is very lighter than most other metals.We can use it to make high strength,good rigidity and light quality products.
2. Excellent corrosion resistance:it can work in the wet air,sea water,strong acid and strong alkai
3. Non magnetic nature:as it is a sort of Non magnetic metal,it cannot be magnetized easily. And its nontoxic nature,a very good compatibility with human tissue and blood.So,it is widely adopted in the field of Medical Science.
Titanium plate:
1. Product name: Titanium Sheet plate
2. Material:titanium GR1,GR2,GR3,GR4,GR5,GR7,GR9,GR12-GR29,Ti11Cr-13v-3Al
3. Standard:Customized
4. Specification: Customized
5. Origin:Baoji, China
6. MOQ:10kg
1.Chemical requirements of titanium plate
N | C | H | Fe | O | Al | V | Pa | Ti | |
Gr 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | bal |
Gr 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | bal |
Gr 3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | / | / | / | bal |
Gr 4 | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 | / | / | / | |
Gr 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | bal |
Gr 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | bal |
Gr 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | bal |
2.Tensile requirements of titanium plate
| Grade | Tensil strength(min) | Yeild strength(min) | Elongation(%) | ||
ksi | MPa | ksi | MPa | ||
1 | 35 | 240 | 20 | 138 | 24 |
2 | 50 | 345 | 40 | 275 | 20 |
3 | 65 | 450 | 55 | 380 | 18 |
4 | 80 | 550 | 70 | 483 | 15 |
5 | 130 | 895 | 120 | 828 | 10 |
7 | 50 | 345 | 40 | 275 | 20 |
9 | 90 | 620 | 70 | 438 | 15 |
Equipment
Quality Control:
Our products will be 100% checked and inspected by our QC before packing and shipment.
ISO 9001:2008 certificate
Quality Inspection:
1. Chemical analysis and Physical Properties test conducted by Bao Ti Group Test center
2. 100% ultrasonic test(UT)
3. Inspect if the surface of the material is contaminated.
Packing
Our Service
