GR1 GR2 GR5 titanium plate sheet supplier
1. Titanium is a kind of rare nonferrous metal. Its density is 4.5g/cm³,it is just 60% of steel.So,it is very lighter than most other metals.We can use it to make high strength,good rigidity and light quality products.
2. Excellent corrosion resistance:it can work in the wet air,sea water,strong acid and strong alkai
3. Non magnetic nature:as it is a sort of Non magnetic metal,it cannot be magnetized easily. And its nontoxic nature,a very good compatibility with human tissue and blood.So,it is widely adopted in the field of Medical Science.
Titanium plate:
1. Product name: Titanium Sheet plate
2. Material:titanium GR1,GR2,GR3,GR4,GR5,GR7,GR9,GR12-GR29,Ti11Cr-13v-3Al
3. Standard:Customized
4. Specification: Customized
5. Origin:Baoji, China
6. MOQ:10kg
1.Chemical requirements of titanium plate
N | C | H | Fe | O | Al | V | Pa | Ti | |
Gr 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | bal |
Gr 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | bal |
Gr 3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | / | / | / | bal |
Gr 4 | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 | / | / | / | |
Gr 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | bal |
Gr 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | bal |
Gr 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | bal |
2.Tensile requirements of titanium plate
| Grade | Tensil strength(min) | Yeild strength(min) | Elongation(%) | ||
ksi | MPa | ksi | MPa | ||
1 | 35 | 240 | 20 | 138 | 24 |
2 | 50 | 345 | 40 | 275 | 20 |
3 | 65 | 450 | 55 | 380 | 18 |
4 | 80 | 550 | 70 | 483 | 15 |
5 | 130 | 895 | 120 | 828 | 10 |
7 | 50 | 345 | 40 | 275 | 20 |
9 | 90 | 620 | 70 | 438 | 15 |
Equipment
Quality Control:
Our products will be 100% checked and inspected by our QC before packing and shipment.
ISO 9001:2008 certificate
Quality Inspection:
1. Chemical analysis and Physical Properties test conducted by Bao Ti Group Test center
2. 100% ultrasonic test(UT)
3. Inspect if the surface of the material is contaminated.

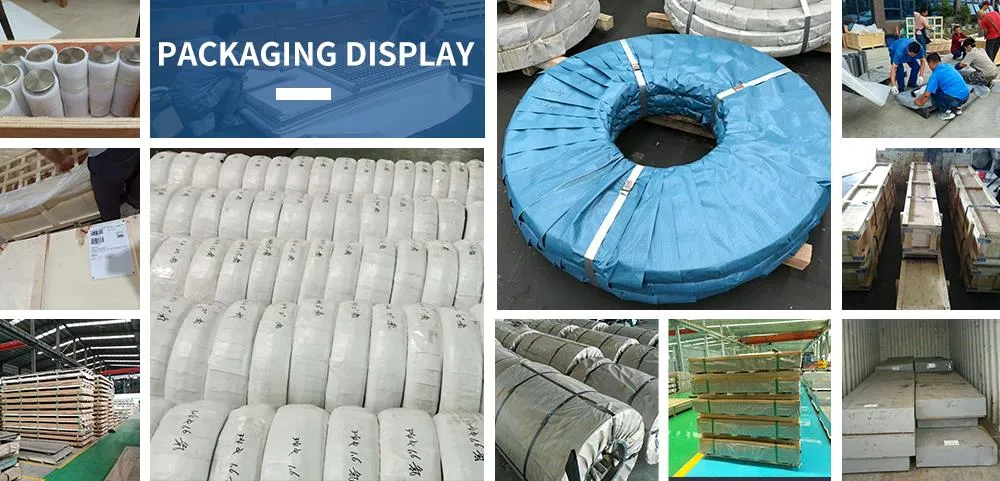

Packing
Our Service
We'll make each hard work to become excellent and excellent, and speed up our measures for standing from the rank of intercontinental top-grade and high-tech enterprises for Gr1/Gr2/Gr5 Titanium Sheet/ Ti Plate. We focus on good cooperation with our customers, we hope to have long-term and stable business contacts and achieve a good situation of mutual win and mutual benefit between the two aspects. By purchasing advanced equipment and introducing high-tech talents, we have provided a strong guarantee for the development and production of first-class products.
