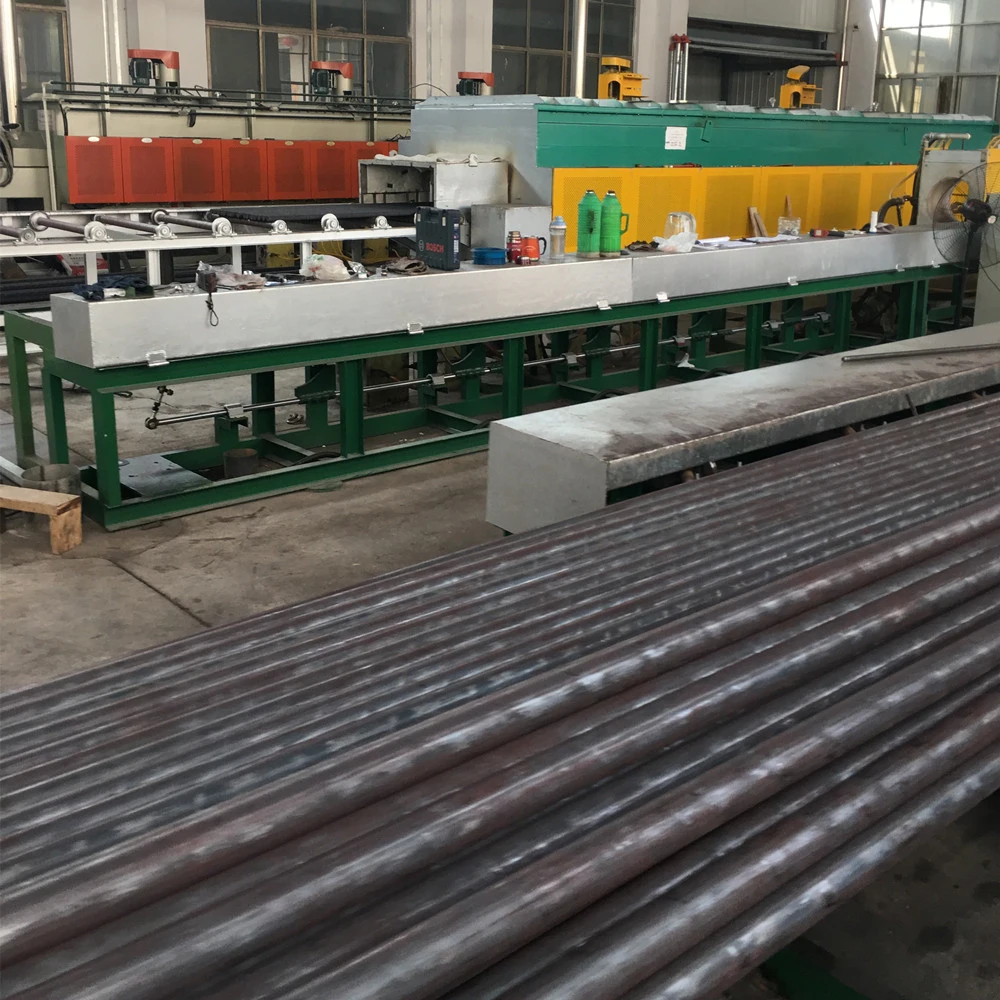

SCM440 42CrMo4 SAE AISI 4140 EN19 1.7225 High Tensile Hot Rolled Steel Round Bar Steel Bar
Production
EN19 AISI 4140 42CrMo4 is a alloy structural steel, which is used for engineering structural, like high tensile shafts, bolts and nuts, gears, pinions and spindles. Locomotive traction with the big gear, supercharger drive gear, pressure vessel, rear axle, gear load of connecting rod and a spring clip
Production
42CrMo4 alloy steel - SAE-AISI 4140 is a low alloy steel. Medium carbon steel is a high strength steel, among which EN19 is an important member of the low alloy category. These steels exhibit positive responses to various heat treatments. 42CrMo4 is a general purpose high strength steel with 1% chromium-molybdenum medium hardenability - usually quenched and tempered in the tensile range of 850 -- 1000 Mpa (condition T).
Production
42CrMo4 alloy steel is a high quality, high strength alloy steel that is generally easy to process when supplied. Under T' condition, it has good ductility, seismic performance and wear resistance.42CrMo4 alloy steel is widely used in engineering steel, such as: manufacturing all kinds of machinery, automobile, mining parts, engine gear, supercharger drive gear, connecting rod, high pressure pin bearing seat, power train application parts, cold forming fastener parts, shaft, gear, oil exploration drill collars, etc.
Production
1.Supply Size range
Hot Rolled en19 steel bar: Ø16mm-310mm
Forging en19 steel bar: Ø260mm-1000mm
Q&T (Quenched&tempered):Ø16-1000mm
Cold drawn bright steel bars : 5mm to 120mm
Production
2.Equivalent Grades
| GB,YB | JIS | DIN(W-Nr.) | BS | NF | |
| 42CrMo | SCM440/(SCM4) | 42CrMo4-1.7225 | 4140 | 708M40/709M40/708A42/EN19 | 42CD4 |
Production
3.Chemical composition
| ASTM A29/29M | C | Si | Mn | Cr | Mo | P | S |
| 4140 | 0.38~0.43 | 0.15~0.35 | 0.75~1.00 | 0.80~1.10 | 0.15~0.25 | ≤0.035 | ≤0.040 |
| DIN WN-r | C | Si | Mn | Cr | Mo | P | S |
| 1.7225 | 0.38~0.45 | ≤0.40 | 0.60~0.90 | 0.90~1.20 | 0.15~0.30 | ≤0.035 | ≤0.035 |
| GB/T | C | Si | Mn | Cr | Mo | P | S |
| 42CrMo | 0.38~0.45 | 0.17~0.37 | 0.50~0.80 | 0.90~1.20 | 0.15~0.25 | ≤0.030 | ≤0.030 |
| BS | C | Si | Mn | Cr | Mo | P | S |
| 708M40 | 0.36~0.44 | 0.10~0.35 | 0.70~1.00 | 0.90~1.20 | 0.15~0.25 | ≤0.035 | ≤0.035 |
| JIS | C | Si | Mn | Cr | Mo | P | S |
| SCM440 | 0.38~0.43 | 0.15~0.35 | 0.60~0.85 | 0.90~1.20 | 0.15~0.30 | ≤0.030 | ≤0.030 |
Production
4.Heat Treatment for 4140 steel round bars
4140 alloy steel material is a high quality Quenched and Tempered Alloy Structural steel, It belong to the high quality medium carbon alloy steel, Oil Quenched & Tempered Hardenss is 28-34 HRC.4140 Annealing delivery hardenss less than 250HB
Heat treatment of aisi 4140 steel
Annealing
AISI 4140 alloy steel is annealed at 872°C (1600°F) followed by slowly cooling in the furnace.
Tempering
AISI 4140 alloy steel can be tempered at 205 to 649°C (400 to 1200°F) depending upon the desired hardness level. The hardness of the steel can be increased if it has lower tempering temperature
Hardening
AISI 4140 alloy steel can be hardened by cold working, or heating and quenching.
Production
5.Packing and Delivery
Production
Packing Details:
1.One bundle including one heat no., one size only.
2.Bundle weight 2 tons to 4tons.
3.At least 3-4 metal straps on each bundle to make it strong enought by loading and unloading.
4.Each bundle should carry label which will show the heat number, size, quantity in pcs, weight , origin or as your requirements.
5.One bundle includes one heat number steel bars only.
Production
Delivery Method
1.Shipment canbe made by 20' container, 40' container or bulk vessel.
2.One 20' container can load max 27tons, 40' container can load max 28.5tons, and bulk vessel doesn't have limit for weights.
3.We can load max length of 6000mm to 20' container, and 12000mm length to 40' containers, and bulk vessel doesn't have limit for lenths
1.MOQ: one bundle, weight about 2-4tons
2.Delivery time : 7-10 days for stocks, and 30 days for new production items.
3.Price term: EXW, FOB, CFR, CIF
4.Payment term: By TT or LC
