1: 36NiCrMo16 steel introduction
36NiCrMo16
Alloy Steel is an alloy steel formulated for primary forming into
wrought products. Cited properties are appropriate for the quenched and
tempered condition. 1.6773 is the EN numeric designation for this
material.
36NiCrMo16 Alloy Steel is a quench and tempering special NiCrMo steel, characterized by very high tensile strength together with good toughness. It is usable in the hardened and stress relieved state. It can harden in the air up to thicknesses equal to 90 mm.
| EU | France | England |
| EN | AFNOR | BS |
| 36NiCrMo16 | 35CND16 | 835M30 |
| 35NCD16 |
3: 36NiCrMo16 steel chemical composition
| C | Si | Mn | Ni | P | S | Cr | Mo |
| 0.32 - 0.39 | max 0.4 | 0.5 - 0.8 | 3.6 - 4.1 | max 0.025 | max 0.025 | 1.6 - 2 | 0.25 - 0.45 |
4: 36NiCrMo16 steel mechanical properties
The mechanical properties mainly include tensile strength, yield
strength, elongation, area or reduction, hardness, impact value,
non-metalic inclusion etc. Different heat treatment, the mechanical
properties will be different, such as normalized, tempered, QT. If you
want to know the properties, kindly contact the salesman.
| Mechanical properties for individual dimensions | ||||
| Dimensions: di (mm) | 16 - 40mm | 40 - 100mm | 100 - 160mm | 160 - 250mm |
| Thickness of semi-finished flat product: t (mm) | 8 - 20mm | 20 - 60mm | 60 - 100mm | 100 - 160mm |
| Tensile strength: Rm (MPa) | 1250 - 1450 MPa | 1100 - 1300 MPa | 1000 - 1200 MPa | 1000 - 1100 MPa |
| Yield point: Re (MPa) | ≥ 1050 MPa | ≥ 900 MPa | ≥ 800 MPa | ≥ 800 MPa |
| Notch toughness: KV (J) | ≥ 30 J | ≥ 35 J | ≥ 45 J | ≥ 45 J |
| Elongation: A (%) | ≥ 9% | ≥ 10% | ≥ 11% | ≥ 11% |
| Contraction: Z (%) | ≥ 40% | ≥ 45% | ≥ 50% | ≥ 50% |
Products Description

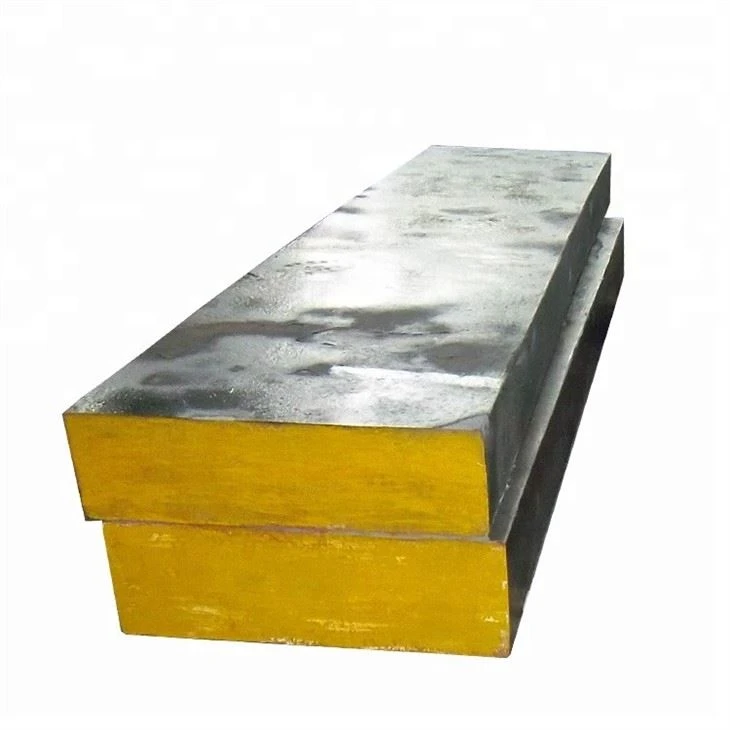

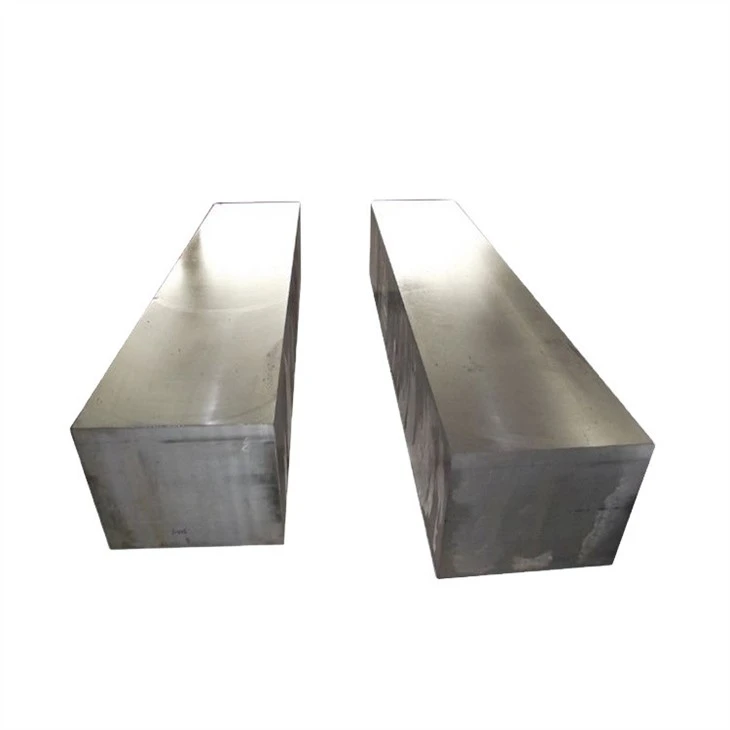

1.6773 Material Equivalent 36NiCrMo16 Alloy Steel Flat Bar has many advantages that make it a popular choice among engineers and manufacturers. One of the most significant advantages of this material is its high level of strength and durability. This steel flat bar is designed to withstand a wide range of pressures and forces, making it suitable for use in a variety of applications.
Another advantage of 1.6773 Material Equivalent 36NiCrMo16 Alloy Steel Flat Bar is its ability to resist wear and corrosion. This makes it ideal for use in harsh environments where other materials may fail. Additionally, this steel flat bar is relatively easy to work with and can be machined or welded to meet specific requirements.
In addition to its physical properties, 1.6773 Material Equivalent 36NiCrMo16 Alloy Steel Flat Bar is also cost-effective. Its long lifespan and low maintenance requirements make it an attractive option for businesses looking to reduce costs without compromising on quality.
Overall, 1.6773 Material Equivalent 36NiCrMo16 Alloy Steel Flat Bar is an excellent choice for numerous applications. Its strong, durable, resistant to wear and corrosion, and cost-effective. These benefits have made it a preferred material for engineers and manufacturers across industries, including automotive, aerospace, construction, and more.
