GR5 Seamless Titanium Tube is a remarkable product that is highly valued in various industries due to its exceptional properties. This titanium tube is made up of the chemical elements Ti, Al, V, and Fe. These elements make the GR5 Seamless Titanium Tube strong, durable, lightweight, and highly resistant to corrosion and oxidation.
The use of GR5 Seamless Titanium Tube is essential in various fields such as aerospace, marine, chemical, medical, and many others where reliability, strength, and longevity are of utmost importance. Its unique set of properties makes it an ideal choice for applications that require an exceptional level of performance in harsh environments.
The titanium used in the GR5 Seamless Titanium Tube is a versatile and abundant metal that is widely available. It is known for its high strength-to-weight ratio, excellent corrosion resistance, and biocompatibility. These properties make titanium a popular choice for medical implants, where it provides long-lasting benefits and helps improve patients' quality of life.
The addition of aluminum and vanadium to titanium increases its hardness, strength, and durability. This makes the GR5 Seamless Titanium Tube an ideal choice for applications that require high-stress resistance, such as aircraft and engine components, race car parts, and sporting goods.
Moreover, the GR5 Seamless Titanium Tube has been proven to be an eco-friendly alternative to traditional materials, reducing the overall environmental impact associated with manufacturing, transportation, and disposal.
About us
Main products: Mill products of titanium (Bar, Wire, Tube, Plate, Foil, Forging and special parts), Titanium outdoor products (Bowel, Spoon, Fork, Bottle, Cup), and some other Non-ferrous metal products.
Products Description
Titanium Grade 5 Tube / Titanium 6AL4V Tube is heat treatable and has high strength and ductility. Ti-6Al-4V alloy is also the most common of all titanium alloys.The wrought material is used in aerospace, medical, and other applications where moderate strength, good strength to weight, and favorable corrosion properties are required.Because of its uniqueness, the production cost of pipes is also a little high.
Seamless Ti-6Al-4V Titanium Gr5 Tube Available Dimension | |||||||||||
Out Diameter(mm) | Wall Thickness(mm) | Length(mm) | |||||||||
1~600 | 0.3~25mm | 6000Max | |||||||||
Seamless Ti-6Al-4V Titanium Gr5 Tube Chemical Component(%) | Residuals(max) | ||||||||||
Ti | N≤ | C≤ | H≤ | Fe≤ | O≤ | Al | V | each | total | ||
balance | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | 0.1 | 0.4 | ||
Seamless Ti-6Al-4V Titanium Gr5 Tube Mechanical Property | |||||||||||
Tensile Strength | Yeild Strength, 0.2% Offset | Elongation (%) | |||||||||
Ksi | Mpa | Ksi | Mpa | ||||||||
≥130 | ≥895 | ≥120 | ≥828 | ≥10 | |||||||
picture of GR5 Seamless Titanium Tube
testing Of GR5 Seamless Titanium Tube
Production process

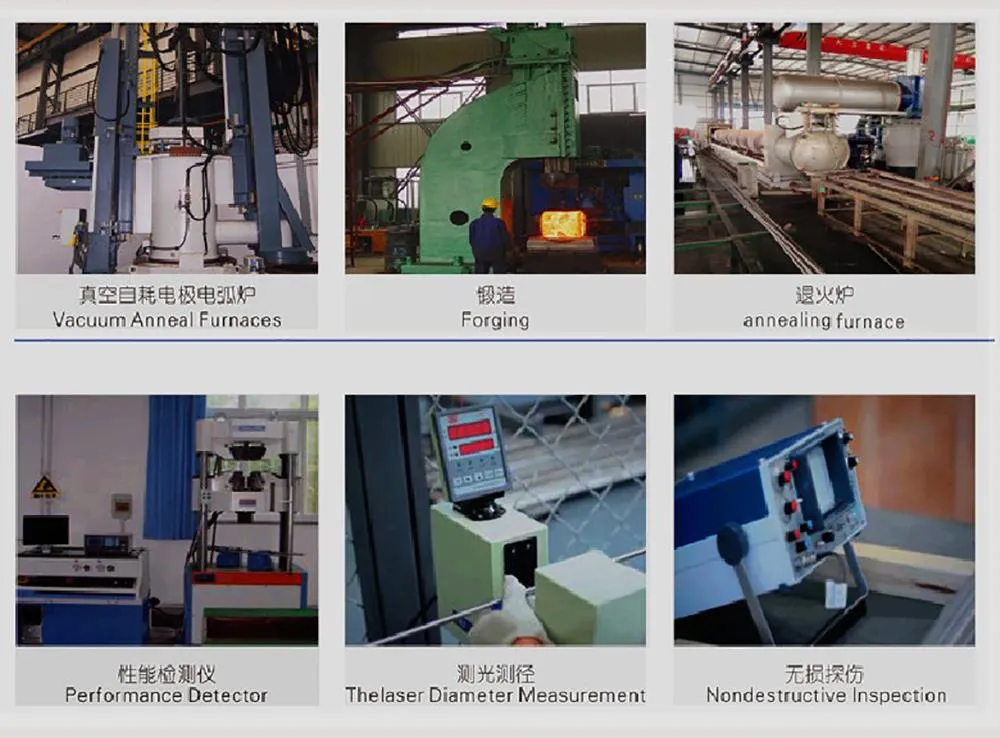

Production equipment
other Products
(1)Titanium plate (2)Titanium bar (3)Titanium tube (4)Titanium wires (5)Titanium screw (6) Titanium filter (7)Titanium foil(8)
Titanium Target
Products application
GR5 Seamless Titanium Tube is a high quality titanium alloy tube, mainly used in aerospace, Marine, chemical industry, biomedicine and other fields. It has high corrosion resistance, high strength, light weight, good heat conductivity and other excellent characteristics, so it is welcomed and used by all walks of life.
(1) In the aerospace field, GR5 Seamless Titanium Tube is widely used in aircraft engines, aviation suspension systems, aircraft housings and other components. Its excellent corrosion resistance and lightweight properties make it an ideal alternative to heavier steel and aluminum pipes, helping to improve aircraft fuel efficiency and performance.
(2) In the field of Marine vessels, GR5 Seamless Titanium Tube can be used in the manufacture of seawater desalination equipment, Marine dredging machines, ship water pipes, cooling water pipes, etc. Its high corrosion resistance can solve the problem of seawater erosion pipeline, improve the equipment life and reliability.
(3) In the chemical industry and biomedical fields, GR5 Seamless Titanium Tube can be used to manufacture chemical reactors, high pressure pipes, medical prosthetics, dental implants, etc. The non-toxic, corrosion-resistant, wear-resistant, non-magnetic properties of titanium alloy pipes make it an ideal material for medical devices and pharmaceutical production equipment.
We are well aware that the quality of products is an important factor affecting the comprehensive performance of products, so we constantly improve the quality of our DIN 17861 3.7175 Gr5 Ti 6al 4V Titanium Seamless Tube for Industrial Use. Our company is advancing towards the goal of international famous brand company, and constantly expanding our business scale. We have set up a customer service center, with a short-term rapid response mechanism, able to respond to customer needs.
