1.2327 86crmov7 Forged Forging Steel Round Bar Shaft

After years of continuous innovation and development, we have grown into a Titanium Target, High Speed Steel, High quality 4140 Alloy Steel Plate supplier integrating design, research and development, production and sales. In the future, we will still rely on a hardworking and enterprising team, rigorous and pragmatic management, high-quality products, excellent and honest services, and continue to build brand value, achieving higher social value. Our company is willing to continue to improve the technological process, optimize the product performance, and improve the service quality with the business principle of 'honoring the contract and keeping the reputation'. The company will always adhere to the "enterprise development, customer profitability" win-win marketing concept, to "provide customers with the needs and satisfaction of the product, convenient and efficient way to buy, happy and satisfied with the purchase process" as the principle. We plan to build the company into a healthy, high-energy and win-win service platform to repay the society.

After several years of development, Sichuan Liaofu Special Steel Industry Co., Ltd mainly produce die steel, high alloy steel smelting, refining, forging, machining, heat treatment of high-quality goods, and formed complete production management system, our company is a private enterprise, the hometown of abrasive tool steel production in China - hubei, the transportation is convenient, the factory has international advanced production equipment, product quality testing equipment.
Company's major equipment: there are 3 tons, 4 tons of electric furnace smelting equipment, 0.5 tons, 1 tons, 3 tons, 5 tons of electroslag furnace, including 3 tons, 5 tons of electroslag furnace and has the function of large steel ingot smelting, steel processing equipment are: active, auxiliary equipment of producer gas generator, continuous heating furnace, annealing furnace, the electric car type annealing furnace.All-hydraulic electric grinding wheel peeling machine, electric band saw, gantry sawing machine, etc.The detection equipment has the chemical analysis, the physical examination, the mechanical performance detection advanced instrument.

forged 1.2327/86CrMoV7 9CR2MOV alloy steel round bar

86CrMoV7 (corresponding to German standard 1.2327) is a high-carbon low-alloy cold working tool steel / cold rolling mill-specific steel. Its core characteristics include high hardenability, high hardness, wear resistance, fatigue resistance, and low crack sensitivity. It is mainly used for large-sized cold rolling mills and precision cold working molds.

I. Basic Information
Standard: DIN 17350, EN ISO 4957
Corresponding designation: 1.2327 (German material code), approximately 85Cr2MoV in China
Type: Cold working tool steel / Cold rolling mill-specific steel

II. Chemical Composition (mass fraction, %)
Element C Si Mn Cr Mo V P S
Range 0.83–0.90 0.15–0.35 0.30–0.45 1.60–1.90 0.15–0.30 0.05–0.15 ≤0.030 ≤0.030

III. Core Properties
Hardness: Can reach 62–65 HRC after quenching + low-temperature tempering; 100°C tempering ≈ 64 HRC, 200°C tempering ≈ 60 HRC
Hardenability: Excellent, uniform hardening for large sections (roll diameter ≤ 700mm)
Toughness: Moderate-high toughness, good impact resistance and fatigue resistance, low crack sensitivity
Wear resistance: High carbon + Cr/Mo/V composite strengthening, long wear life

IV. Heat Treatment Process
Annealing: Hold at 780–820°C, cool in furnace to ≤ 500°C and air cool; hardness ≤ 240 HB
Quenching: Oil quenching / salt bath cooling
Tempering: Hold at 180–220°C for 2–4 hours, air cool; common 200°C tempering, balancing hardness and toughness

V. Typical Applications
Cold rolling working rolls, supporting rolls, straightening rolls, finishing rolls
Cold working molds, punches, edge trimming molds, cold forging molds
Wear-resistant shafts, roll sleeves, wear-resistant parts of rolling mills

VI. Material Comparison (with common cold working steels)
Designation 86CrMoV7(1.2327) Cr12MoV(1.2601) 9Cr2Mo
Carbon content Medium-high carbon High carbon Medium carbon
Hardenability Excellence High Medium
Toughness Good General Good
Main application Large-sized cold rolling mills Heavy-duty cold molds Medium-sized and small rolling mills / molds

Name:DIN 1.2327/GB 86CrMoV7 Tool Steel Round Bar

Place of Origin:Liaoning,ChinaBrand Name:Dongbei Tegang

Shape:round barMaterial:Tool Steel

Steel Grade: DIN 1.2327/GB 86CrMoV7

Size:Diameter:10mm~300mm

Application:used for making cold roll ,etc.

Chemical composition

Packaging details: According to customer's require or export's standard

Delivery Time:In 30days after we receive 30% deposite

Port: SHANGHAI

MOQ: our stove capacity is 15tons

Standard:

Product Advantages:

1,good comprehensive performace

2,good property with ESR

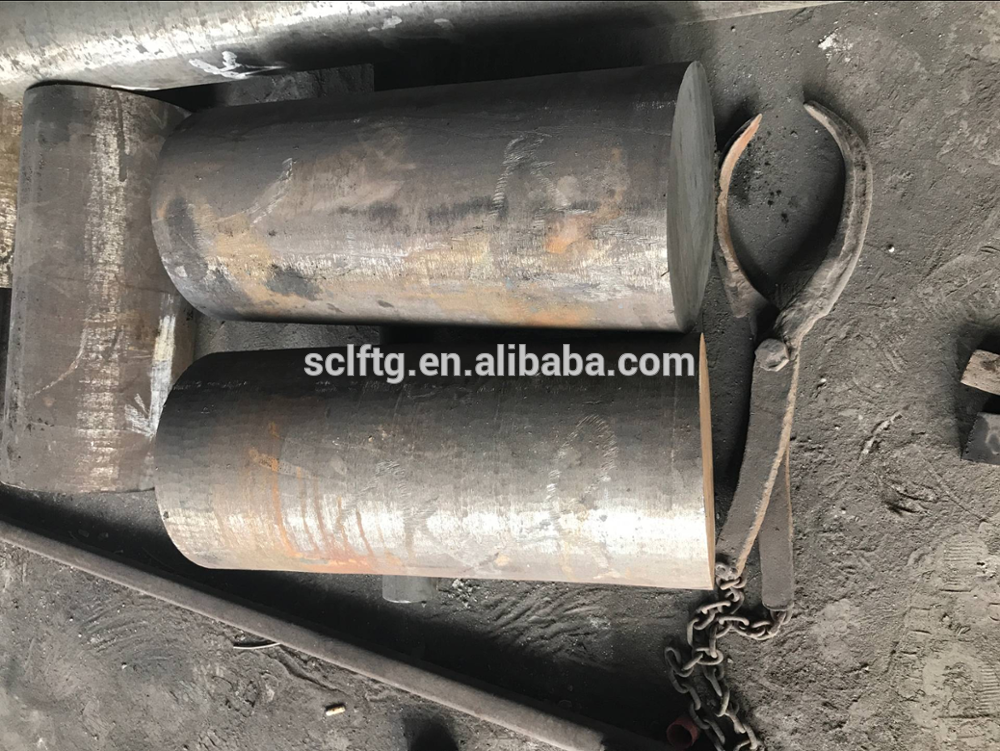

we have sold A2 1.2379 86CRMOV7 1.2344 flat bar and forged round bar to germany,singapore,pakistan and so on,u can find some pictures below

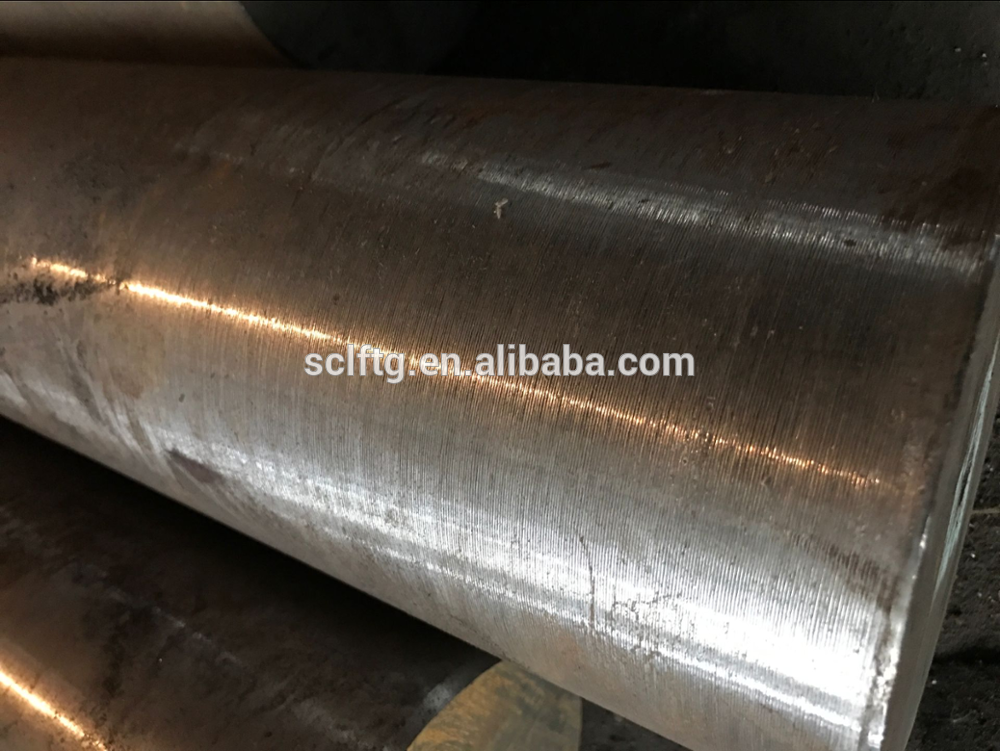

D2 turned surface bar

ProductSalesInformation:

1.Forged Ingot

2.Material Taking Machine

4.in stock

With several factories, we will provide a wide assortment of 1.2327 86crmov7 Forged Forging Steel Round Bar Shaft. Owning to latest technologies, we facilitate our clients with custom made creation facility. Establishing an excellent corporate culture is an inherent requirement for an enterprise to fulfill its mission and an objective need for steady and sustainable development.
